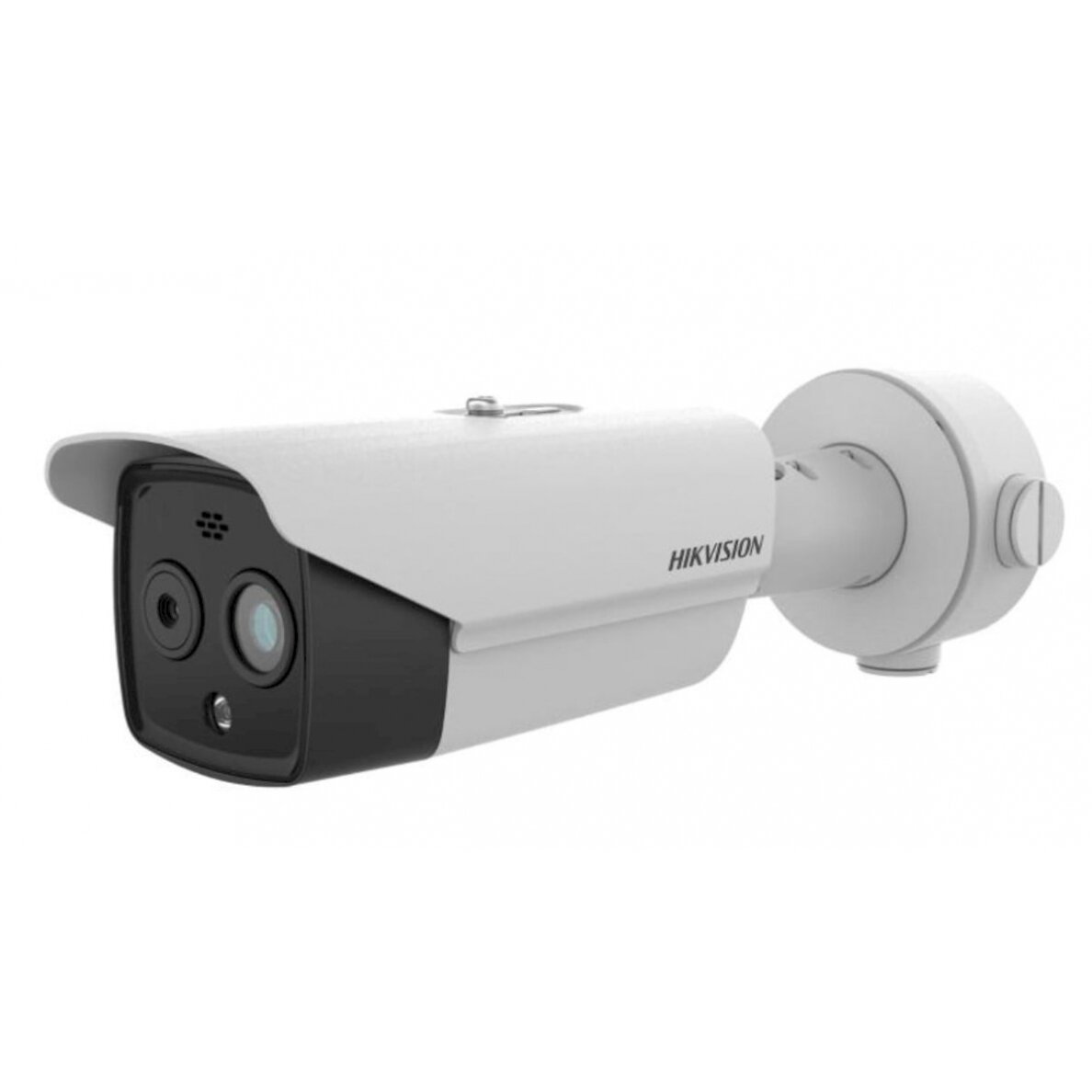

Hikvision thermal bullet DS-2TD2628T-7/QA
Hikvision thermal bullet DS-2TD2628T-7/QA
Kaina 122905 € su PVMPrekė išparduota.SusisiekiteIP camera DS-2TD2628T-7/QA Manufacturer: Hikvision Type: BULLET Technology: THERMOVISOR, bi-spectral Thermal resolution: 256x192 NETD < 40mk (± 2°C) Temperature range: -20°C to 550°C Optical camera: 6.9mm Lighting up to 30m Resistance class: IP67 PoE power supply Includes 1260ZJ-
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution256 x 192
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD ≤ 40 mK (@25° C,F# = 1.0)
- Focal Length6.9 mm
- IFOV1.74 mrad
- ApertureF1.0
- Field of View24.9° × 18.7° (H × V)
- Min. Focusing Distance1 m
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Field of View53.0° ×28.0° (H × V)
- Focal Length6.4 mm
- Shutter Speed1 s to 1/100,000 s
- White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Day & Night ModeIR Cut Filter with Auto Switch
- WDR120 dB
- ApertureF 1.6
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in Picture Display partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR Distance Up to 30 m
- IR Intensity and AngleAutomatically adjusted
- Audible and Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- Audio alarm
Yes, for three types of audible alarm (VCA and Temperature Exception)
3 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range -20°C to 550°C (-4°F to 1022°F);
- Temperature Accuracy Max (±2°C, ±2 %)
- General FunctionFire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
- Video and Audio
- Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-stream
Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Client iVMS-4200, Hik-Connect
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio Output Linear level, impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
- Power Consumption
24 VDC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
- Weight1550 g (3.41 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans56 m
- VCA Range for Vehicles168 m
-
