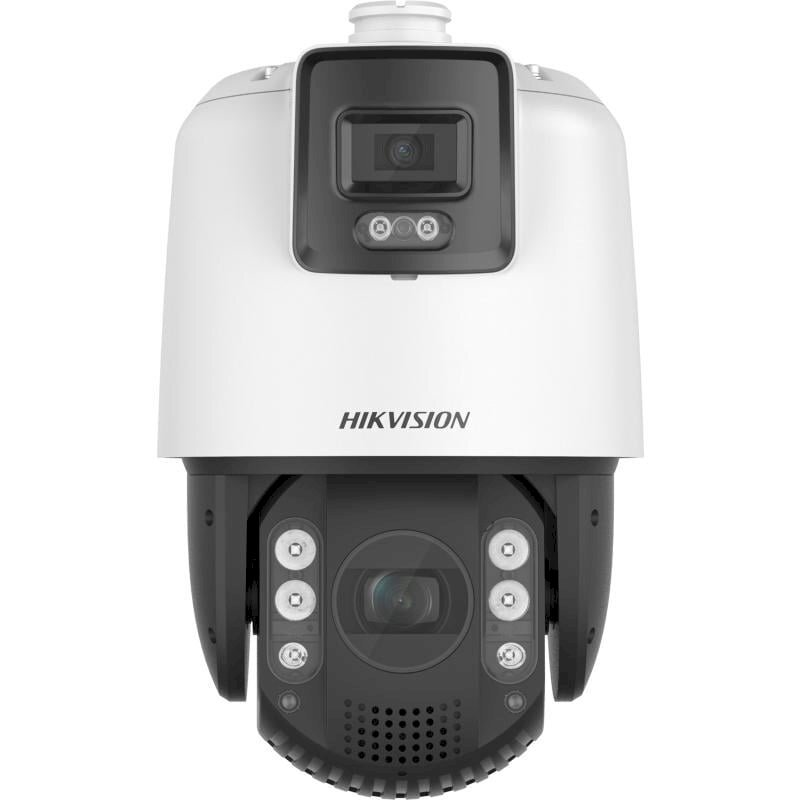

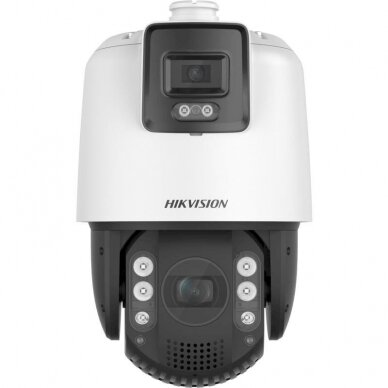

Hikvision PTZ DS-2SE7C425MW-AEB(14F1)(P3)
Hikvision PTZ DS-2SE7C425MW-AEB(14F1)(P3)
Kaina 133916 € su PVMPrekė išparduota.Susisiekite4MP kameraDarkFighter, Acusense technologija25x optinis priartinimas, 16x skaitmeninis priartinimasPalaiko WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focusIki 200 m IR pašvietimasPalaiko 24 VAC & Hi-PoEIP66, IK10-
- Kamera
- Sensorius[Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS
- Maks. rezoliucija[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
- Min. apšvietimas
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Užrakto greitis1 s to 1/30,000 s
- Day & NightICR
- Priartinimas[PTZ channel] 25 × optical, 16 × digital
- Lėtas užraktasyes
- HLCyes
- 3D DNRyes
- Lęšis
- FOV[Bullet channel]: 4 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
- FOV
[Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;
[PTZ channel]:
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Fokusavimassemi-auto||manual||auto
- Diafragama[Bullet channel]: F1.0; [PTZ channel]: F1.6
- Priartinimo greitis[PTZ channel]: approx. 3.6 s
- Apšvietimas
- Papildomo apšviešimo tipas[PTZ channel]: IR; [Bullet channel]: White Light
- Papildomo apšvietimo diapazonas[PTZ channel]: up to 200 m; [Bullet channel]: up to 30 m
- Išmanus papildomas apšvietimasYes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan greitispan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt greitistilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proporcingas Panyes
- Iš anksto išsaugoti nustatymai300
- Išsaugotų nustatymų sustabdymasyes
- Patruliavimas8 patrols, up to 32 presets for each patrol
- Išsaugotų rėžimų skenavimas4 pattern scans
- Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
- 3D pozicijayes
- PTZ būsenos vaizdavimasyes
- Užduočių grafikaspreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
- Išjungimo atmintisyes
- Vaizdas
- Pagrindinis srautas
[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Antrinis srautas
[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Trečias srautas
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Vaizdo suspaudimasH.265||H.264||MJPEG
- Vaizdo bitų greitis32 kbps to 16384 kbps
- H.264 tipasbaseline profile||main profile||high profile
- H.265 tipasmain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)main stream, sub-stream and third stream respectively support eight fixed areas
- Garsas
- Garso suspaudimasG.711,G.722.1,G.726,MP2L2,PCM
- Garso bitų greitis32 to 192 Kbps (MP2L2)
- Garso atrankos dažnis8 kHz,16 kHz,32 kHz,48 kHz
- Pašalinių garsų šalinimasyes
- Internetas
- ProtokolaiIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
- Tiesioginis vaizdo žiūrėjimas20
- APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- User/Host32
- SaugumasAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
- Vidinė atmintisNAS (NFS, SMB/ CIFS)|| ANR||ANR
- KlientasiVMS-4200||Hik-Connect
- NaršyklėIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaisaturation||brightness||contrast||sharpness
- Diena/Naktis režimasday, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)120 dB WDR
- SNR＞52dB
- Rūko šalinimasyes
- Vaizdo stabilizavimasEIS (Built-in gyroscope to improve EIS performance)
- Nuotraukų pagražinimasBLC, HLC, 3D DNR
- Privatumo kaukė[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Regioninis fokusavimasyes
- Regioninė ekspozicijayes
- Sąsaja
- Interneto sąsajaRJ45, self-adaptive 10M/100M Ethernet port
- Saugyklos vietaBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Garsas1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,1 audio output, line level, impedance: 600 Ω
- Signalizacija2 input(s), 1 output(s)
- Perkrovimasyes
- Funkcijos
- Pagrindinės funkcijos[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
- Išmaniosios funkcijos[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Sąsaja[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Išmanus sekimas[PTZ channel] yes
- Išmani jungtisManual tracking, auto tracking, tracking takeover, track in turn
- Išmaniosios funkcijos
- Veido atpažinimas[Bullet channel] no,[PTZ channel] yes
- Pagrindinis
- Sistemos parametrai24 VAC, Hi-PoE
- DydisØ 220 mm × 382.1 mm (Ø 8.66" × 15.04")
- SvorisApprox. 6 kg (13.23 lb.)
- MedžiagaADC12
- Darbo sąlygos-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
- Pagrindinės funkcijosmirror, password protection, watermark, IP address filter
- Rasos šalinimasDemist by heating the glass
- Energijos sunaudojimas ir stiprisMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
- Patvirtinimai
- ApsaugaIP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
-
