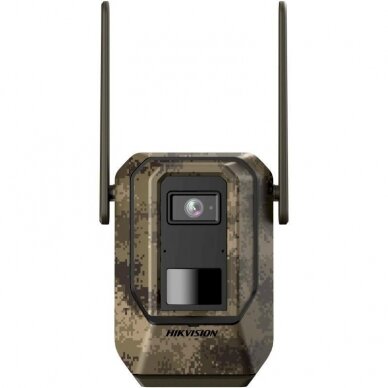

Hikvision DS-2XS6F45G0-IC0/4G(2.8mm)
Hikvision DS-2XS6F45G0-IC0/4G(2.8mm)
Kaina 77213 € su PVMPrekė išparduota.Susisiekite4MP kamera„Hik-Connect“ debesies paslauga ir APP, skirta nuotoliniam įrenginių valdymui ir peržiūroms120dB WDRIR pašvietimas 15mSD kortelė iki 256 GBPalaiko LTE-TDD/LTE-FDD/WCDMA/GSM, kad būtų sukurtas belaidis ryšysGPS padėties nustatymąIntegruotas mikrofonas garso apsaugai realiuoju laiku125 baterijos veikimo laikas budėjimo režimu-
- Kamera
- Sensorius1/3" Progressive Scan CMOS
- Maks. rezoliucija2688 × 1520
- Min. apšvietimasColor: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Užrakto greitis1 s to 1/100,000 s
- Day & NightIR cut filter
- Lęšis
- Focal Length & FOV2.8 mm, horizontal FOV 102°, vertical FOV 55°, diagonal FOV 122°
- DiafragamaF1.4
- Lęšio montavimasM12
- DORI
- DORI2.8 mm: D: 64.2 m, O: 25.5 m, R: 12.8 m, I: 6.4 m
- Apšvietimas
- Papildomo apšviešimo tipasIR
- IR bangos ilgis-I: 850 nm, -I9: 940 nm
- Papildomo apšvietimo diapazonasUp to 15 m
- Išmanus papildomas apšvietimasYes
- Vaizdas
- Pagrindinis srautas
50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 1 fps (1280 × 720, 640 × 480)
60 Hz: 1 fps (1280 × 720, 640 × 480)
- Vaizdo suspaudimas
Main stream: H.265,
Sub-stream: H.265, H.264, MJPEG,
Third stream: H.265, H.264
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed region(s) for main stream
- Garsas
- Pašalinių garsų šalinimasYes
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso tipasMono sound
- Internetas
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, UDP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200,Hik-Connect
- Naršyklė
Plug-in required live view: IE10, IE11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+, Safari12+
- Mobile Communication
- Dažnis
/4G model:
LTE-TDD Band 38/40/41
LTE-FDD Band 1/3/5/7/8/20/28
WCDMA Band 1/5/8
GSM 850/900/1800MHz
- Standartas/4G model: LTE-TDD/LTE-FDD/WCDMA/GSM
- Nuotrauka
- Diena/Naktis režimasDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Nuotraukų pagražinimasBLC,HLC,defog,3D DNR
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
- SNR≥ 52 dB
- Privatumo kaukėYes
- Transducer
- PIR RangeUp to 15 m
- PIR AngleHorizontal: 90° ± 5°, vertical: 40° ± 5°
- Satellite Positioning
- Satellite Positioning DetectionSupport GPS and searching longitude and latitude of the device
- Sąsaja
- Įmontuotas mikrofonas1 built-in microphone(s)
- Vidinė atmintis
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Interneto sąsaja1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
- Perkrovimo mygtukas
Yes,
Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.
- Funkcijos
- Pagrindinės funckcijosMotion detection,video tampering alarm,exception
- Išmaniosios funkcijos
Line crossing detection, intrusion detection, region entrance detection, region exiting detection,
Face detection
- Sąsaja
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,
send message
- Pagrindinis
- Sistemos parametrai6 to 15 VDC, 0.82 to 0.33 A, max. 4.9 W, C0: shrapnel, dry cell (10, 5AA dry cell, 1.5 V)
- Pagrindinės funkcijosHeartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
- MedžiagaPlastic
- Dydis
With /4G model: with antennas folded: 171.5 mm × 139.7 mm × 86.9 mm (6.8 × 5.5\\" × 3.4\\"), with antennas extending: 283.4 mm × 139.7 mm × 86.9 mm (11.2\\" × 5.5\\" × 3.4\\"); Without /4G model: 171.5 mm × 117.3 mm × 86.9 mm (6.8\\" × 4.6\\" × 3.4\\")"
- Pakuotės dydis260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")
- Svoris
Approx. 0.61 kg (1.2 lb.)
- Svoris su įpakavimu
C0: approx. 1.34 kg (3.0 lb.), C1: approx. 2.47 kg (5.4 lb.), C2: approx. 2.82 kg (6.2 lb.)
- Sandėliavimo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos
C1/C2: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing),
C0: -10 °C to 60 °C (-14 °F to 140 °F). Humidity 95% or less (non-condensing)
- Baterija
- Baterijos tipasC1/C2: chargeable lithium battery, C0: 5AA dry cell
- Battery Voltage
C1/C2:
Rated voltage: 7.2 VDC
Charging voltage: 8.4 VDC
Discharging cut-off voltage: 5.6 VDC
C0:
Rated voltage: 15 VDC
Discharging cut-off voltage: 8 VDC
- TalpaC1/C2: 9.4 Ah
- Darbo sąlygos drėgmė
C1/C2: -20 °C to 60°C (-4 °F to 140 °F)
C0: -10 °C to 60 °C (-14 °F to 140 °F)
- Cycle Lifetime
Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night) with the ambient temperature at 25 °C.
With /4G model:
C1/C: 125 days
C0: 30 days
Without /4G model:
C1/C2: 210 days
C0: 51 days
For C1 and C2 models, make sure the battery is fully charged before using the device.
- Patvirtinimai
- Apsauga
IP66: IEC 60529-2013,
For the lens: IP 67: IEC 60529-2013
-
