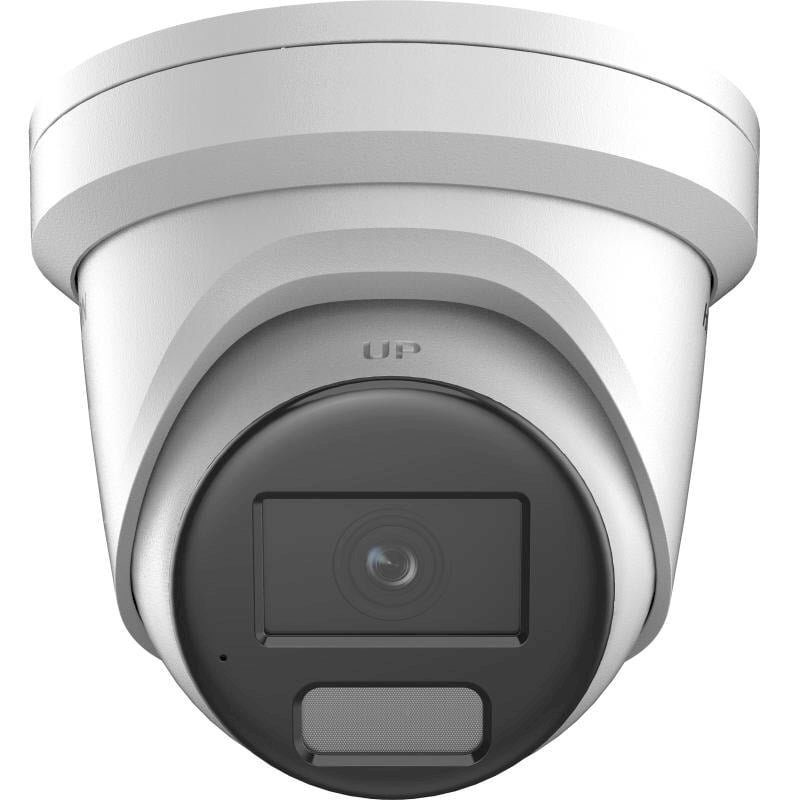

Hikvision dome DS-2CD2386G2H-IU F4 (white, 8 MP, 30 m. IR, AcuSense)

  • Hikvision dome DS-2CD2386G2H-IU F4 (white, 8 MP, 30 m. IR, AcuSense)

    Kaina 31658  su PVM
    Šią prekę turime sandėlyje.
    Į krepšelį
    MP (MegaPixel): 8 MPLens: 4 mm, horizontal FOV: 87.1°Technology: AcuSenseIntegrated microphone: YesNight light: 30 m. IRMicroSD storage: Yes, 256GBOperating Conditions: -30 °C to 60 °C Protection: IP67Video Compression: H.265/H.264/H.264+/H.265+WiFi: NoBracket: DS-1280ZJ-PT6Outdoor/Indoor: Outdoor
    • Camera
    • Image Sensor1/1.8" Progressive Scan CMOS
    • Max. Resolution3840 × 2160
    • Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
    • Lens
    • Lens TypeFixed focal lens, 2.8 and 4 mm optional
    • Focal Length & FOV

      2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

      4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°

    • Lens MountM16
    • Iris TypeFixed
    • ApertureF1.0
    • Depth of Field

      2.8 mm: 3.3 m to ∞

      4 mm: 3.8 m to ∞

    • DORI
    • DORI

      2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

      4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangeUp to 30 m
    • Smart Supplement LightYes
    • IR Wavelength850 nm
    • Video
    • Main Stream

      50 Hz:

      25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz:

      24 fps (3840 × 2160)

      30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

    • Third Stream

      50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      *Third stream is supported under certain settings.

    • Video Compression

      Main stream: H.265/H.264/H.264+/H.265+,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264,

      *Third stream is supported under certain settings.

    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeBaseline Profile,Main Profile,High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR,VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Audio
    • Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
    • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Environment Noise Filtering-U: Yes
    • Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
    • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
    • ClientiVMS-4200,Hik-Connect,Hik-Central
    • Web Browser

      Plug-in required live view: IE 10, IE 11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Image
    • Image Parameters SwitchYes
    • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Day/Night SwitchDay,Night,Auto,Schedule
    • Image EnhancementBLC,HLC,3D DNR
    • SNR≥ 52 dB
    • Wide Dynamic Range (WDR)120 dB
    • Privacy Mask4 programmable polygon privacy masks
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage

      Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

    • Built-in Microphone-U: Yes
    • Reset KeyYes
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
    • Smart Event

      Scene change detection

    • Deep Learning Function
    • Face CaptureYes
    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

    • General
    • Power

      12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

      PoE: IEEE 802.3af, Class 3, max. 8 W

    • Material

      Cover: metal, main body: metal

    • DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
    • Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
    • WeightApprox. 775 g (1.7 lb.)
    • With Package WeightApprox. 1231 g (2.7 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding
    • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Approval
    • EMC

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      IC: ICES-003: Issue 7,

      RCM: AS/NZS CISPR 32: 2015

    • Safety

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017

    • Environment

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • ProtectionIP67: IEC 60529-2013
