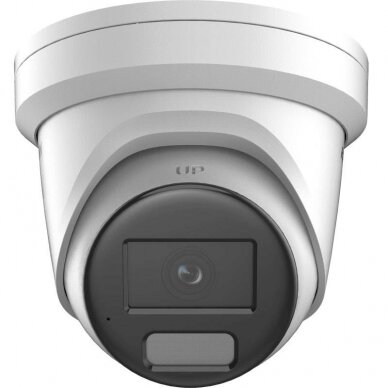

Hikvision dome DS-2CD2386G2H-IS2U/SL F2.8 (balta, 8 MP, 30 m. IR, AcuSense)
Hikvision dome DS-2CD2386G2H-IS2U/SL F2.8 (balta, 8 MP, 30 m. IR, AcuSense)
Kaina 37941 € su PVMŠią prekę turime sandėlyje.IP kamera Modelis: DS-2CD2386G2H-IS2U/SL Objektyvas: F2.8 Stilius: DOME Gamintojas: Hikvision Technologijos: AcuSense, DARKFIGHTER Įspėjimo funkcija: Alarm Garso funkcija: Audio Integruotas garsiakalbis ir mikrofonas: Taip Kodavimo technologija: H.265+ Rezoliucija: 4K (8MP) Objektyvas: 2.8mm (~110.7°) IR pašvietimas: EXIR 2.0 IR iki 30m Apsaugos klasė: IP66 Plati dinaminė sritis (WDR): 120dB Maitinimas: PoE Atmintis: SD iki 256GB-
- Kamera
- Sensorius1/1.8" Progressive Scan CMOS
- Maks. rezoliucija3840 × 2160
- Min. apšvietimasColor: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
- Užrakto greitis1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Kampo keitimasPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lęšis
- Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 130°
4 mm, horizontal FOV 90°, vertical FOV 47°, diagonal FOV 111°
- Lęšio montavimasM16
- Rainelės tipasFixed
- DiafragamaF1.0
- Ryškumo gylis
2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞
- DORI
- DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
- Apšvietimas
- Papildomo apšviešimo tipasIR
- Papildomo apšvietimo diapazonasUp to 30 m
- Išmanus papildomas apšvietimasYes
- IR bangos ilgis850 nm
- Vaizdas
- Pagrindinis srautas
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
- Vaizdo bitų greitis32 Kbps to 16 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Garsas
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso tipasMono sound
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
- Pašalinių garsų šalinimasYes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- KlientasiVMS-4200,Hik-Connect
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Diena/Naktis režimasDay,Night,Auto,Schedule
- Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)120 dB
- Privatumo kaukė4 programmable polygon privacy masks
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintis
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Įmontuotas mikrofonasYes, 2 built-in microphones
- Įmontuotas garsiakalbisMax. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB.
- Garsas
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
- Išmaniosios funkcijos
Scene change detection
- Išmaniosios funkcijos
- Veido atpažinimasYes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 18 W
- Medžiaga
Cover: metal, main body: metal
- DydisØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
- Pakuotės dydis170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
- SvorisApprox. 780 g (1.71 lb.)
- Svoris su įpakavimuApprox. 1210 g (2.67 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Pagrindinės funkcijosHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Flashing Light
/SRB model: Red and Blue Light
/SL model: White Light
- Patvirtinimai
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013
-
