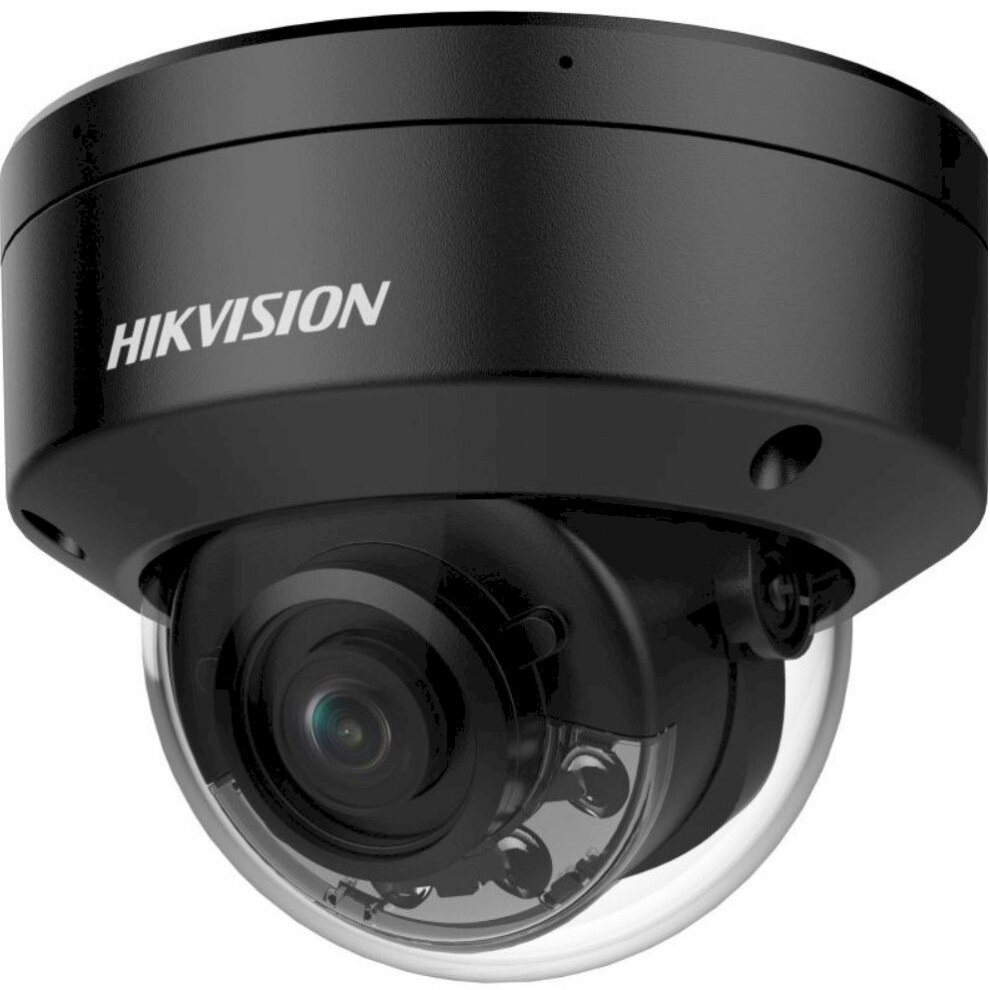

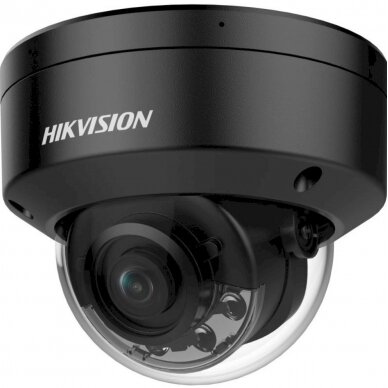

Hikvision dome DS-2CD2187G2H-LISU F2.8 (juoda, 8 MP, 30 m. IR; 30 m. LED; Hybrid Light)
Hikvision dome DS-2CD2187G2H-LISU F2.8 (juoda, 8 MP, 30 m. IR; 30 m. LED; Hybrid Light)
Kaina 42256 € su PVMPrekė išparduota.SusisiekiteMP (MegaPixel): 8 MPSpalva: juodaObjektyvas: 2.8 mm, horizontalus FOV: 109°Technologija: AcuSense, Darkfighter, Hybrid lightIntegruotas mikrofonas: TaipNaktinis pašvietimas: 30 m. LEDVieta microSD talpai: Taip, 512GBDarbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67Vaizdo suspaudimas: H.265+WiFi: NeLaikiklis/bazė (papildomai): DS-1272ZJ-120BLauko/vidaus: Lauko-
- Kamera
- Sensorius1/1.8" Progressive Scan CMOS
- Maks. rezoliucija3840 × 2160
- Min. apšvietimasColor: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
- Užrakto greitis1/3 s to 1/100,000 s
- Day & Night24/7 color imaging
- Kampo keitimasPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lęšis
- Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 109°, vertical FOV 59°, diagonal FOV 130°
4 mm, horizontal FOV 93°, vertical FOV 49°, diagonal FOV 111°
- Lęšio montavimasM16
- Rainelės tipasFixed
- DiafragamaF1.0
- Ryškumo gylis
2.8 mm: 3.1 m to ∞
4 mm: 3.5 m to ∞
- DORI
- DORI
2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m
4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
- Apšvietimas
- Papildomo apšviešimo tipasWhite Light
- Papildomo apšvietimo diapazonasUp to 30 m
- Išmanus papildomas apšvietimasYes
- Vaizdas
- Pagrindinis srautas
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
- Vaizdo bitų greitis32 Kbps to 16 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region(s) for main stream and sub-stream
- Garsas
- Garso tipas-SU: Mono sound
- Garso suspaudimas-SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimas-SU: Yes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200,iVMS-5200,Hik-Connect
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Diena/Naktis režimasDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)130 dB
- SNR≥ 52 dB
- Nuotraukų pagražinimasBLC,HLC,3D DNR
- Privatumo kaukė4 regions of privacy mask
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintis
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Įmontuotas mikrofonas-SU: Yes
- Garsas
-SU: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija-SU: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning (-SU), trigger alarm output (-SU), supplement light
- Išmaniosios funkcijos
- Veido atpažinimasYes
- Pagrindinis
- Sistemos parametrai 12 VDC ± 25%, 0.6 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8.5 W
- MedžiagaMetal
- Dydis
Ø121.5 mm × 97.6 mm (Ø4.8 × 3.8\\")"
- Pakuotės dydis150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- SvorisApprox. 540 g (1.2 lb.)
- Svoris su įpakavimuApprox. 735 g (1.6 lb.)
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Pagrindinės funkcijosHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Patvirtinimai
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
-
