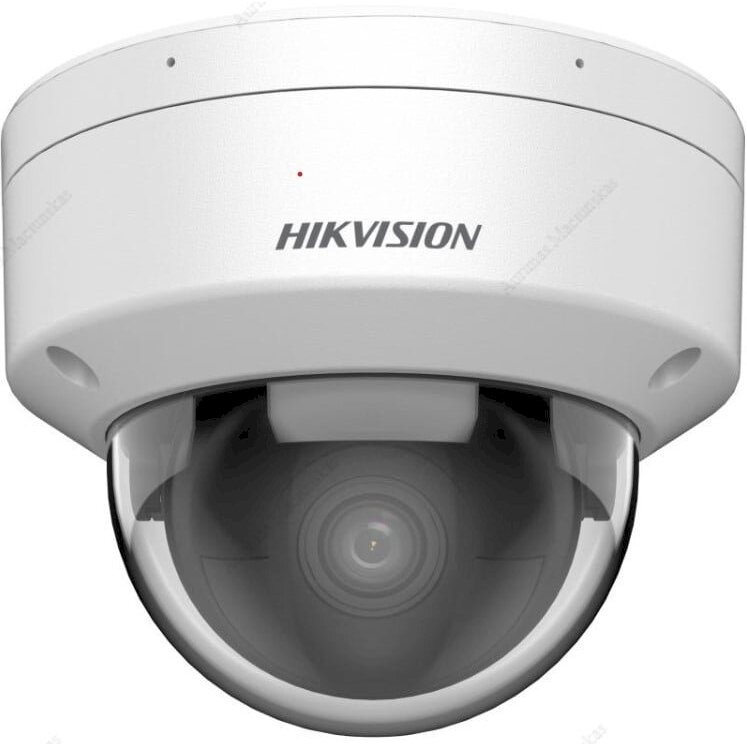

Hikvision dome DS-2CD2186G2H-ISU F4 (balta, 8 MP, 30 m. IR, AcuSense)
Hikvision dome DS-2CD2186G2H-ISU F4 (balta, 8 MP, 30 m. IR, AcuSense)
Kaina 35417 € su PVMPrekė išparduota.SusisiekiteMP (MegaPixel): 8 MP Objektyvas: 4 mm, horizontalus FOV: 90°Technologija: AcuSenseIntegruotas mikrofonas: TaipIntegruotas garsiakalbis: Ne, yra garso įvestisNaktinis pašvietimas: 30 m. IR;Vieta microSD talpai: Taip, 256GBDarbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67Vaizdo suspaudimas: H.265+WiFi: NeLaikiklis/bazė (papildomai): DS-1280ZJ-DM46Lauko/vidaus: Lauko-
- Kamera
- Sensorius1/1.8" Progressive Scan CMOS
- Maks. rezoliucija3840 × 2160
- Min. apšvietimasColor: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
- Užrakto greitis1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Kampo keitimasPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lęšis
- Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°
- Lęšio montavimasM16
- Rainelės tipasFixed
- DiafragamaF1.0
- Ryškumo gylis
2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞
- DORI
- DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
- Apšvietimas
- Papildomo apšviešimo tipasIR
- Papildomo apšvietimo diapazonasUp to 30 m
- Išmanus papildomas apšvietimasYes
- IR bangos ilgis850 nm
- Vaizdas
- Pagrindinis srautas
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
- Vaizdo bitų greitis32 Kbps to 16 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Garsas
- Garso suspaudimas-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso tipas-U: Mono sound
- Garso bitų greitis-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Garso atrankos dažnis-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimas-U: Yes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200,Hik-Connect,Hik-Central
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Diena/Naktis režimasDay,Night,Auto,Schedule
- Nuotraukų pagražinimasBLC,HLC,3D DNR
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)130 dB
- Privatumo kaukė4 programmable polygon privacy masks
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintis
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Įmontuotas mikrofonas-U: Yes
- Garsas-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija-S: 1 input, 1 output (max. 12 VDC, 30 mA)
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
- Išmaniosios funkcijos
Scene change detection
- Išmaniosios funkcijos
- Veido atpažinimasYes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggered by specified target types (human and vehicle)
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9.5 W
- Medžiaga
Base: aluminum alloy, cover: aluminum alloy
- DydisØ121.5 mm × 97.6 mm (Ø4.78" × 3.84")
- Pakuotės dydis234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
- SvorisApprox. 525 g (1.2 lb.)
- Svoris su įpakavimuApprox. 750 g (1.7 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Pagrindinės funkcijosHeartbeat,mirror,password reset via email,pixel counter,anti-banding
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Patvirtinimai
- EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- Saugumas
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
-
