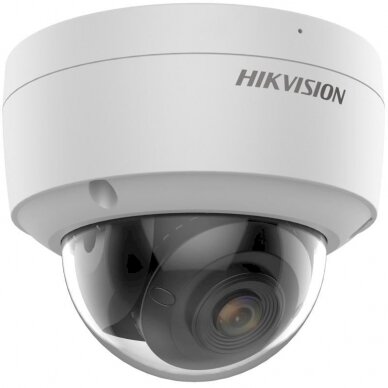

Hikvision dome DS-2CD2147G2(C) F2.8 (balta, 4 MP, 30 m. LED, ColorVu)
Hikvision dome DS-2CD2147G2(C) F2.8 (balta, 4 MP, 30 m. LED, ColorVu)
Kaina 31124 € su PVMPrekė išparduota.SusisiekiteMP (MegaPixel): 4 MP Objektyvas: 2.8 mm, horizontalus FOV: 112°Technologija: ColorVuIntegruotas mikrofonas: TaipNaktinis pašvietimas: 30 m. LEDVieta microSD talpai: Taip, 512GBDarbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67Vaizdo suspaudimas: H.265+WiFi: NeLaikiklis/bazė (papildomai): DS-1272ZJ-120Lauko/vidaus: Lauko-
- Kamera
- Sensorius1/1.8" Progressive Scan CMOS
- Maks. rezoliucija2688 × 1520
- Min. apšvietimas0.0005 Lux @ (F1.0, AGC ON)
- Užrakto greitis1/3 s to 1/100,000 s
- Day & NightBlue glass module to reduce ghost phenomenon
- Kampo keitimasPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lęšis
- Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
- Lęšio montavimasM16
- Rainelės tipasFixed
- DiafragamaF1.0
- DORI
- DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- Vaizdas
- Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile/Main Profile/High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Garsas
- Garso suspaudimas-SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimas-SU: Yes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Vidinė atmintis
MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200, Hik-Connect, Hik-Central
- Naršyklė
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR)130 dB
- SNR≥ 52 dB
- Nuotraukų pagražinimasBLC, HLC, 3D DNR
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintisBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 512 GB
- Įmontuotas mikrofonas-SU: Yes
- Garsas
-SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Signalizacija-SU: 1 input, 1 output (max. 12 VDC, 30 mA)
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection (human and vehicle targets classification), video tampering alarm, exception
- Išmaniosios funkcijos
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
- Sąsaja
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
-SU: audible warning
- Išmaniosios funkcijos
- Veido atpažinimasYes
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
- DydisØ121.4 mm × 100.1 mm (Ø4.8" × 3.9")
- Pakuotės dydis150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6")
- SvorisApprox. 580 g (1.2 lb.)
- Svoris su įpakavimuApprox. 820 g (1.6 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Kalba
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Patvirtinimai
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016)
- Saugumas
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
- AplinkosaugaCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ApsaugaIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
-
