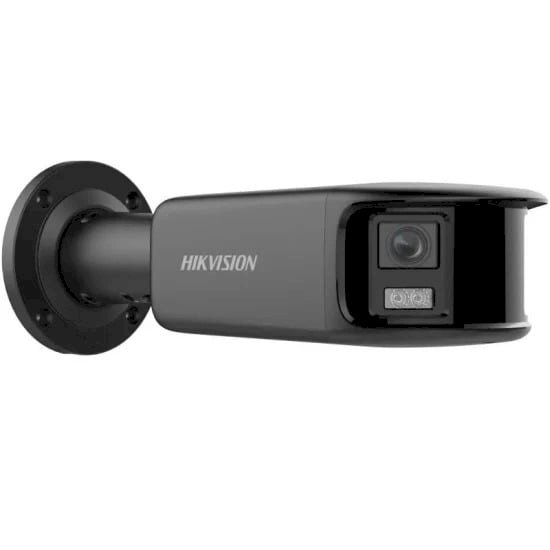

Hikvision bullet DS-2CD2T87G2P-LSU/SL(C) (juoda, 8 MP, 40 m. IR; 40 LED, ColorVu)
Hikvision bullet DS-2CD2T87G2P-LSU/SL(C) (juoda, 8 MP, 40 m. IR; 40 LED, ColorVu)
Kaina 59844 € su PVMPrekė išparduota.SusisiekiteMP (MegaPixel): 8 MP Objektyvas: 4 mm, horizontalus FOV: 180°Technologija: ColorVuIntegruotas mikrofonas: TaipIntegruotas garsiakalbis: TaipNaktinis pašvietimas: 40 m. IR; 40 m. LEDVieta microSD talpai: Taip, 512GBDarbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67Vaizdo suspaudimas: H.265+Laikiklis/bazė: DS-1280ZJ-SWiFi: NeLauko/vidaus: Lauko-
- Kamera
- Sensorius 2 × 1/1.8" Progressive Scan CMOS
- Maks. rezoliucija 5120 × 1440
- Min. apšvietimas Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Užrakto greitis 1/3 s to 1/100,000 s
- Kampo keitimas Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Lęšis
- Lęšio tipas Fixed focal lens, dual lens: 4 mm
- Focal Length & FOV 4 mm, horizontal FOV: 180°, vertical FOV: 44°
- Lęšio montavimas M16
- Rainelės tipas Fixed
- Diafragama F1.0
- Ryškumo gylis 3.6 m to ∞
- DORI
- DORI 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- Apšvietimas
- Papildomo apšviešimo tipas White Light
- Papildomo apšvietimo diapazonas Up to 40 m
- Išmanus papildomas apšvietimas Yes
- Vaizdas
- Pagrindinis srautas
When WDR is On:
50 Hz: 12.5 fps (5120 × 1440)
60 Hz: 15 fps (5120 × 1440)
When WDR is Off:
50 Hz: 20 fps (5120 × 1440)
60 Hz: 20 fps (5120 × 1440)
- Antrinis srautas
When WDR is On:
50 Hz: 12.5 fps (1920 × 536, 960 × 272)
60 Hz: 15 fps (1920 × 536, 960 × 272)
When WDR is Off:
50 Hz: 20 fps (1920 × 536, 960 × 272)
60 Hz: 20 fps (1920 × 536, 960 × 272)
- Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Vaizdo bitų greitis 32 Kbps to 16 Mbps
- H.264 tipas Baseline Profile,Main Profile,High Profile
- H.265 tipas Main Profile
- Bitų greičio kontrolė CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream
- Garsas
- Garso tipas Mono sound
- Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimas Yes
- Internetas
- Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
- Tiesioginis vaizdo žiūrėjimas Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Klientas iVMS-4200,Hik-Connect,Hik-Central
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Nuotrauka
- Nuotraukos parametrų keitiklis Yes
- Nuotraukos nustatymai saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Diena/Naktis režimas Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 130 dB
- SNR ≥ 52 dB
- Nuotraukų pagražinimas BLC,HLC,3D DNR
- Privatumo kaukė 8 rectangular privacy masks
- Sąsaja
- Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Įmontuotas mikrofonas Yes
- Įmontuotas garsiakalbis Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dB
- Garsas
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija 1 input, 1 output (max. 24 VDC, 1 A)
- Perkrovimo mygtukas Yes
- Funkcijos
- Pagrindinės funckcijos Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
- Išmaniosios funkcijos scene change detection
- Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
- Išmaniosios funkcijos
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Medžiaga Front cover: metal, body: metal, bracket: metal
- Dydis 118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")
- Pakuotės dydis 405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")
- Svoris Approx. 1420 g (3.1 lb.)
- Svoris su įpakavimu Approx. 2228 g (4.9 lb.)
- Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pagrindinės funkcijos Anti-banding, heartbeat, password reset via email, password protection, one-key reset
- Flashing Light Yes
- Patvirtinimai
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Apsauga IP67: IEC 60529-2013
-
